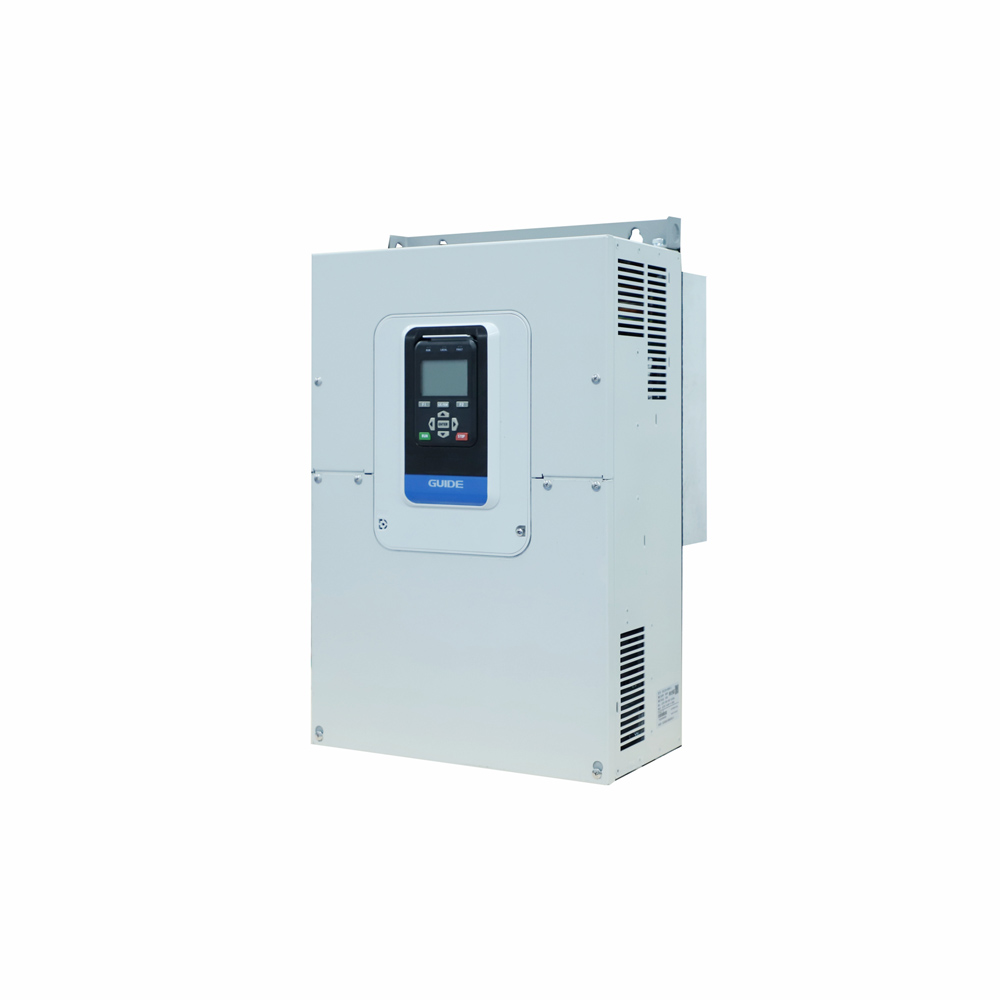

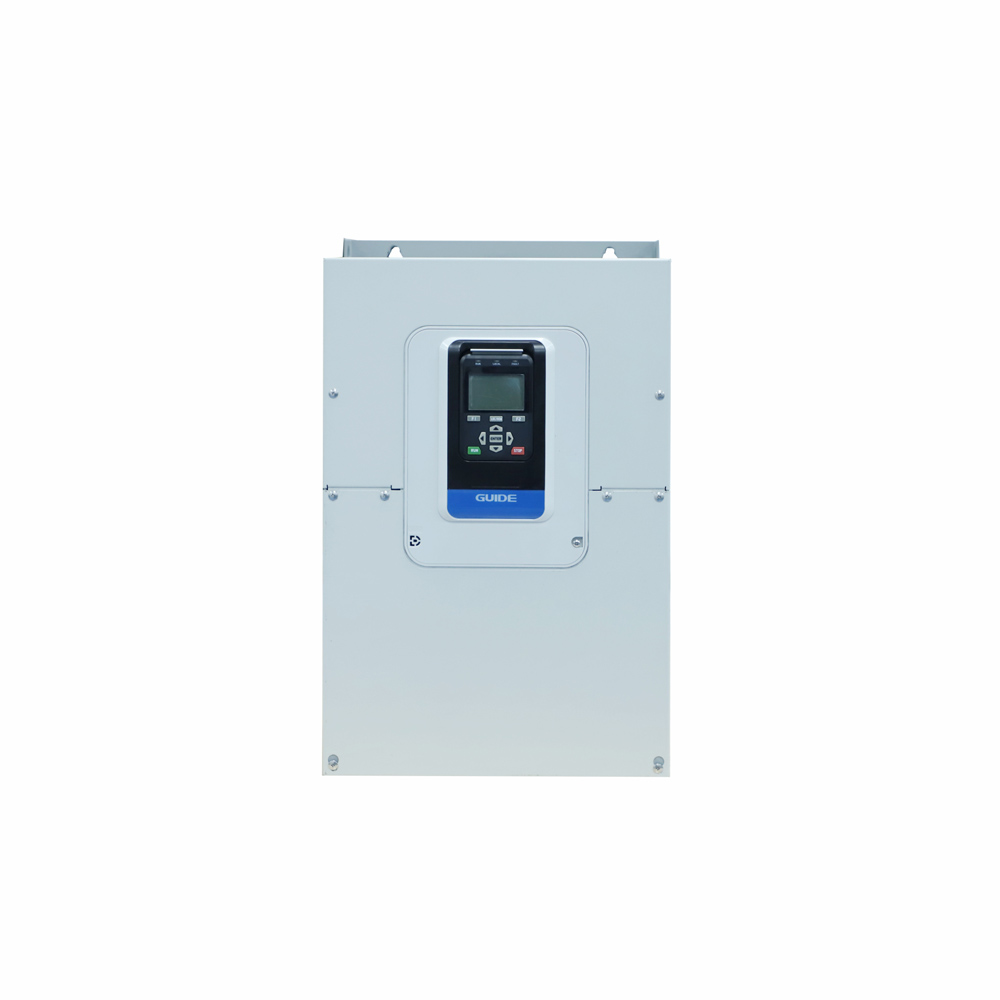

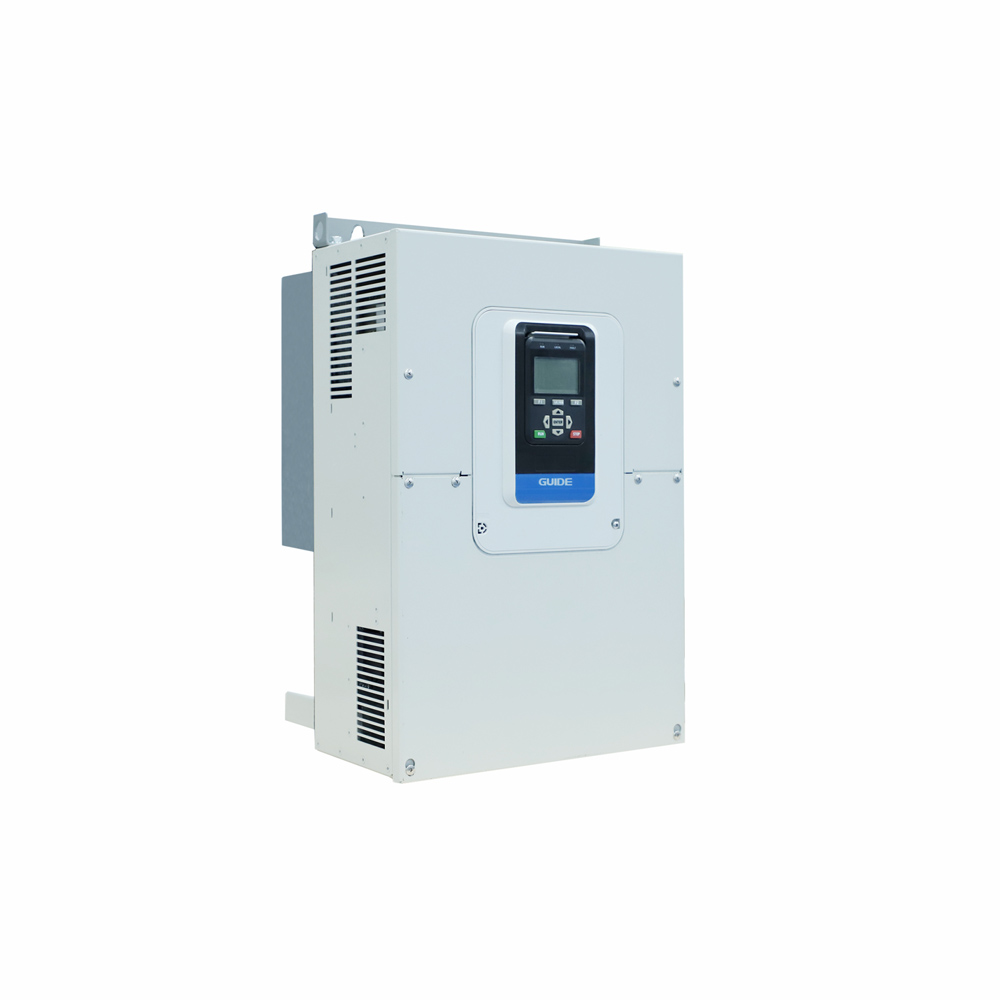

GF630N02 Series Textile-Dedicated VFD
The GF630N02 series of textile-dedicated VFDs is a high-performance product designed specifically for use in the textile industry. It uses advanced sensor-less control technology to deliver high torque output at low frequencies. It also can perform 200% of the rated torque at zero speed and achieve a speed stability accuracy of ±0.2% under closed-loop vector control. The brand-new production process and comprehensive testing equipment ensure greater stability and reliability, enhancing production efficiency and quality.
- Features
- Specification
- Application
- Download
Product Features:
◎ Brand-new hardware and software design for superior performance improvements;
◎ Higher quality assurance with a stylish industrial appearance;
◎ Complete isolation between the component cavity and the air duct to prevent cotton lint from entering,and ensure a favorable working environment for components;
◎ The board meets the 3C3 requirements, making the product resistant to moisture and capable of withstanding harsh gases;
◎ Elimination of the main air duct fan, with the heat sink exposed to utilize the on-site system air duct for heat dissipation;
◎ Large-spacing design of the heat sink to reduce the clogging of air duct by lint;
◎ Both open-loop and closed-loop vector control can achieve 200% torque output at zero speed;
◎ When the load does not exceed 50% of the motor's rated load, motor self-tuning with load can be performed, and the obtained motor parameters are consistent with those obtained from motor self-tuning without load.
◎ Built-in constant power control function; when entering the constant power field-weakening speed regulation zone, the VFD automatically adjusts the output frequency based on the load size.
